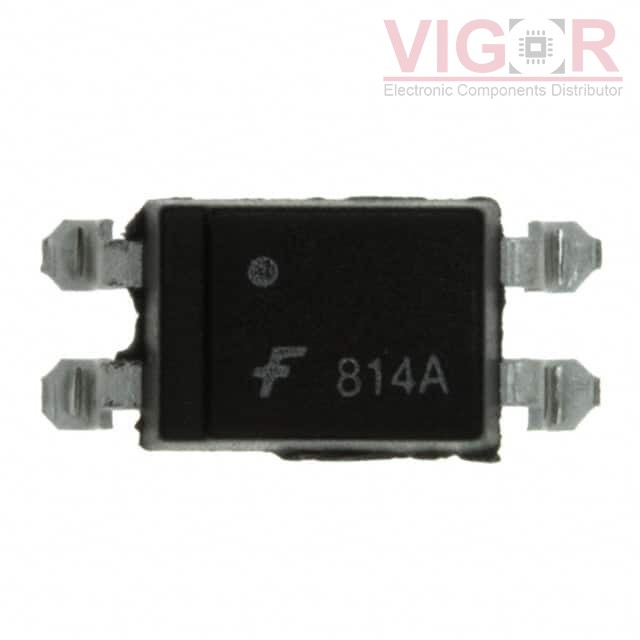

FOD814AS

Part No :: FOD814AS

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISOLATOR 5KV TRANSISTOR 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: FOD814AS PDF

Availability: 0 pieces

Unit Price: ~~$0.76000~~

Current price of FOD814AS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FOD814AS Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	50% @ 1mA
Current Transfer Ratio (Max):	150% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
