6N136-X009

Part No :: 6N136-X009

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 4085528

Description: OPTOISO 5.3KV TRANS W/BASE 8SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 6N136-X009 PDF

Country of origin: -

Date code: -

6N136-X009 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	19% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	200ns, 200ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	15V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.33V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1200

Shipped from

HK warehouse

Expected Shipping Date

Apr 11 - Apr 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3900~~	~~$1.39~~
10	~~$1.1312~~	~~$11.31~~
25	~~$0.8700~~	~~$21.75~~
100	~~$0.7829~~	~~$78.29~~
250	~~$0.6959~~	~~$173.97~~
500	~~$0.5915~~	~~$295.74~~
2000	~~$0.4628~~	~~$925.50~~
6000	~~$0.4523~~	~~$2 713.92~~

Current price of 6N136-X009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

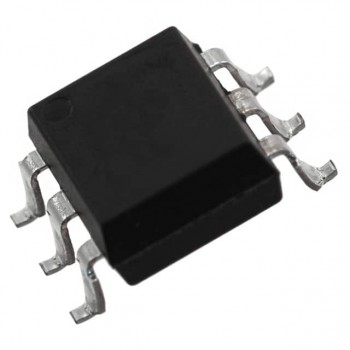

H11AA3S1(TB)-V
