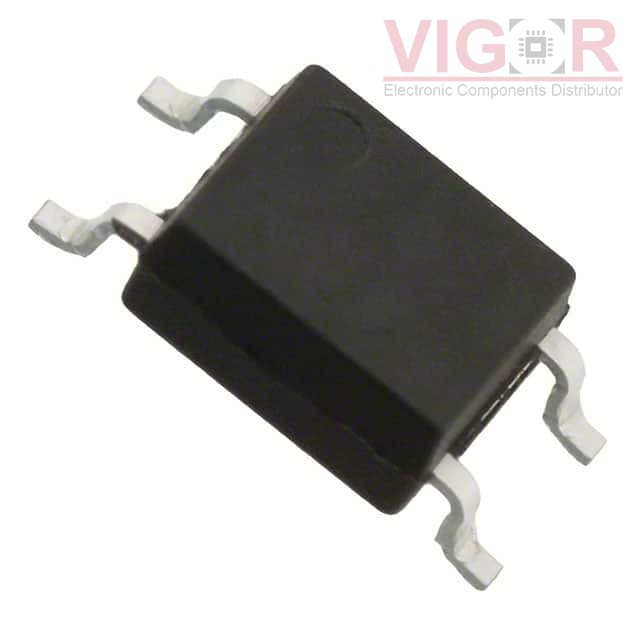

HCPL-354-000E

Part No :: HCPL-354-000E

Manufacturer: Broadcom

Description: OPTOISO 3.75KV TRANS 4MINIFLAT

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL-354-000E PDF

Availability: 21943 pieces

Unit Price: ~~$0.71000~~

Current price of HCPL-354-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCPL-354-000E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	20% @ 1mA
Current Transfer Ratio (Max):	400% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	35V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-Mini-Flat
