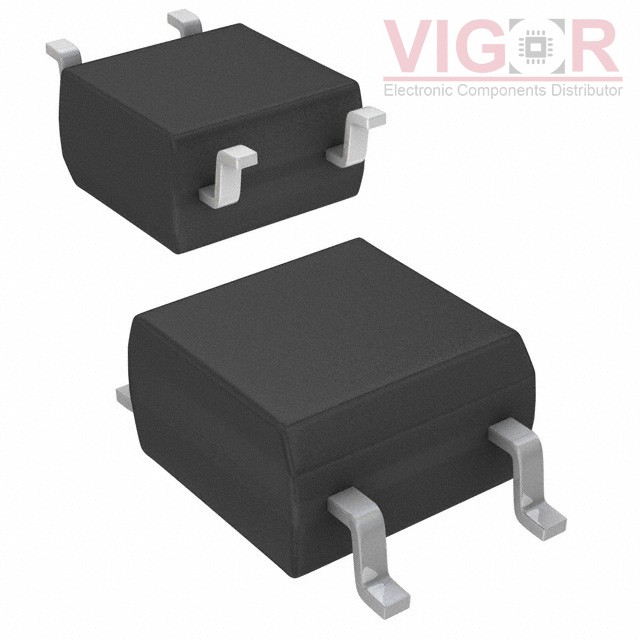

TLP2301(TPL,E

Part No :: TLP2301(TPL,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISO 3.75KV TRANS 6-SO 4 LEAD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP2301(TPL,E PDF

Availability: 3088 pieces

Unit Price: ~~$0.63000~~

Current price of TLP2301(TPL,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLP2301(TPL,E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	50% @ 1mA
Current Transfer Ratio (Max):	600% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	40V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package:	6-SO, 4 Lead
