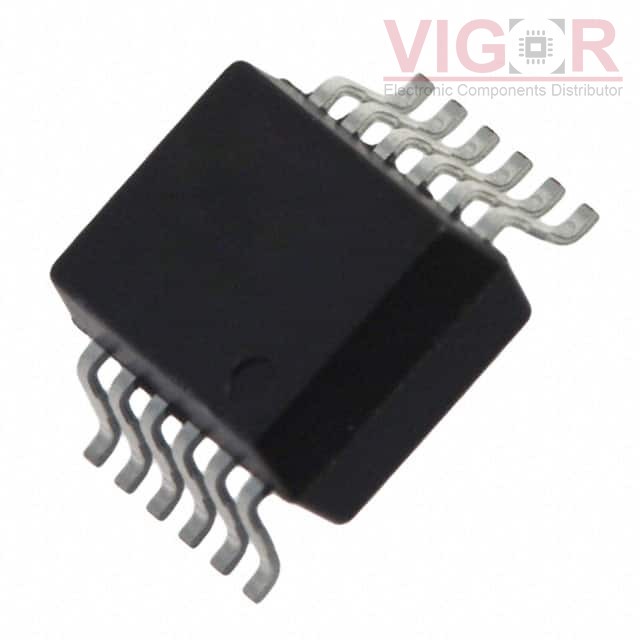

PS2841-4A-F3-AX

Part No :: PS2841-4A-F3-AX

Manufacturer: Renesas Electronics America

Description: OPTOISO 1.5KV 4CH TRANS 12BSOP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2841-4A-F3-AX PDF

Availability: 2500 pieces

Unit Price: ~~$5.35000~~

Current price of PS2841-4A-F3-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PS2841-4A-F3-AX Specifications

Type	Description
Series:	NEPOC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	4
Voltage - Isolation:	1500Vrms
Current Transfer Ratio (Min):	100% @ 1mA
Current Transfer Ratio (Max):	400% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	20µs, 110µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	20mA
Voltage - Forward (Vf) (Typ):	1.1V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	12-BSOP (0.173", 4.40mm Width)
Supplier Device Package:	12-SSOP
