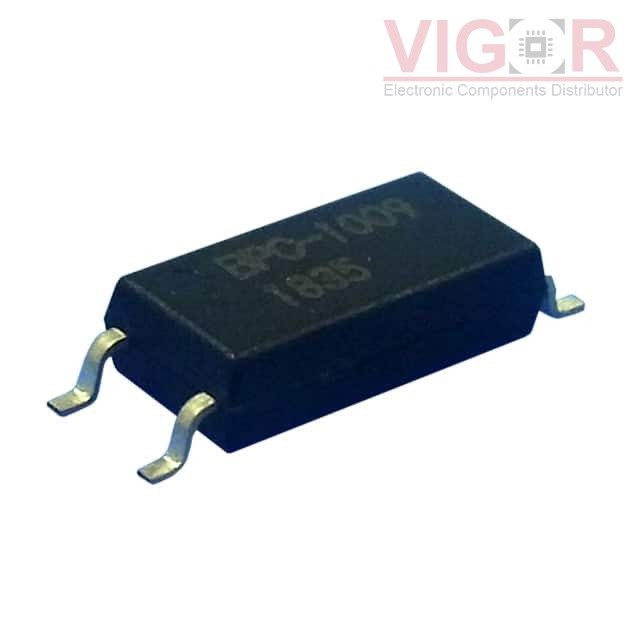

BPC-1009

Part No :: BPC-1009

Manufacturer: American Bright

Description: 4 PINS TRANSISTOR OUTPUT OPTOCOU

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: BPC-1009 PDF

Availability: 3000 pieces

Unit Price: ~~$1.05000~~

Current price of BPC-1009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BPC-1009 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	18µs, 18µs (Max)
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-30°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	-
