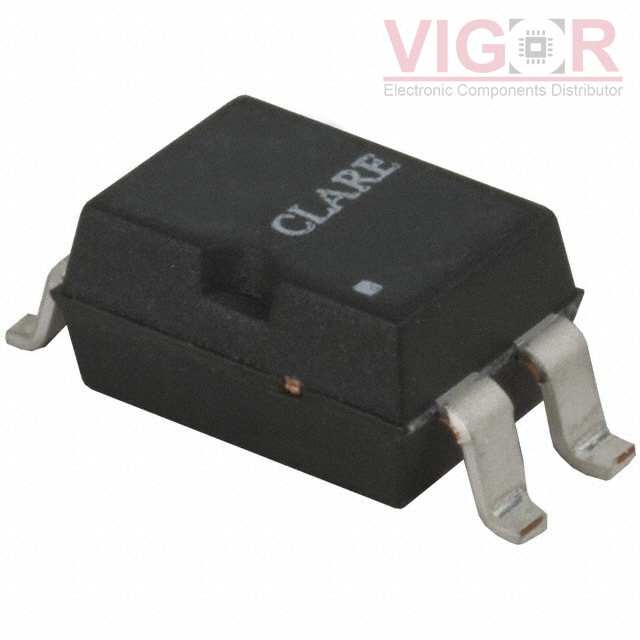

CPC1301GRTR

Part No :: CPC1301GRTR

Manufacturer: Wickmann / Littelfuse

Description: OPTOISOLTR 5KV DARLINGTON 4-SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: CPC1301GRTR PDF

Availability: 0 pieces

Unit Price: ~~$1.34000~~

Current price of CPC1301GRTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CPC1301GRTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	1000% @ 1mA
Current Transfer Ratio (Max):	8000% @ 1mA
Turn On / Turn Off Time (Typ):	1µs, 80µs
Rise / Fall Time (Typ):	40µs, 2.6µs
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	350V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	1 mA
Vce Saturation (Max):	1.2V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
