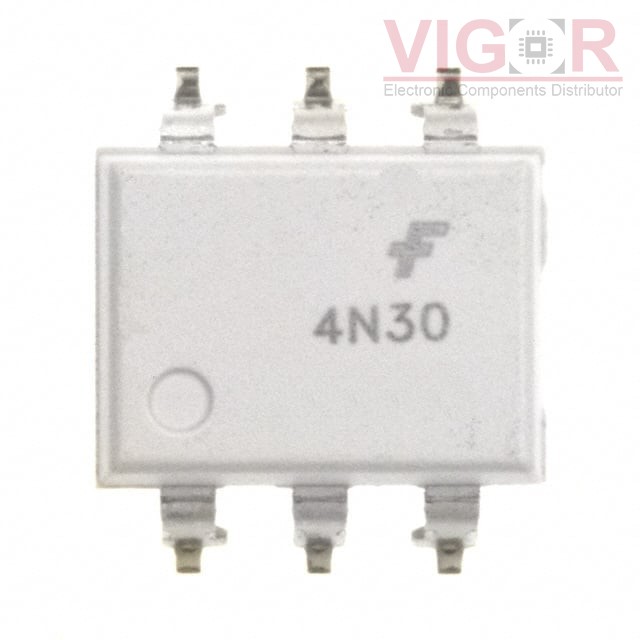

4N30SM

Part No :: 4N30SM

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 4.17KV DARL W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N30SM PDF

Availability: 10001000 pieces

Unit Price: ~~$1.00000~~

Current price of 4N30SM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

4N30SM Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	4170Vrms
Current Transfer Ratio (Min):	100% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 40µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	150mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	80 mA
Vce Saturation (Max):	1V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
