HMA2701V

HMA2701V

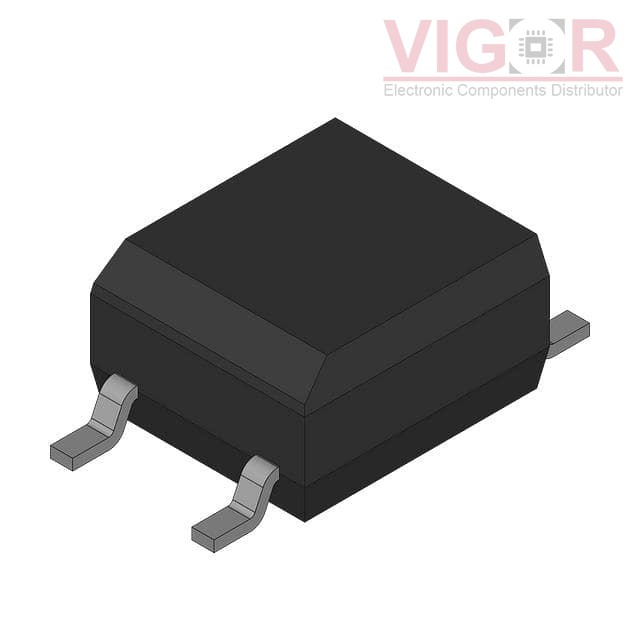

Image is for reference,
please contact us to get the real picture

Part No :

HMA2701V

Manufacturer
VIGOR
Description
TRANSISTOR OUTPUT OPTOCOUPLER
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Sep 30 - Oct 04 2025
DataSheet
HMA2701V PDF
Availability
0 pieces
Unit Price
$0.09000

Current price of HMA2701V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMA2701V Specifications
Type Description
Series:-
Package:Box
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):300% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):40V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.3V (Max)
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
