TLP290(GR,SE

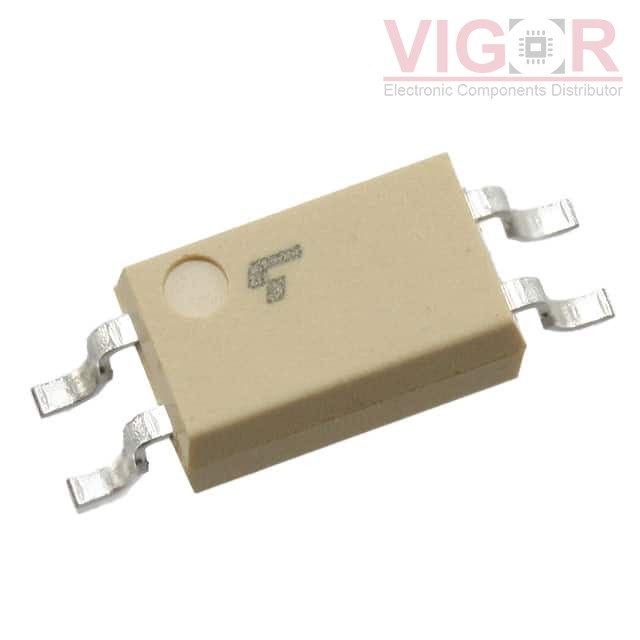

Part No :: TLP290(GR,SE

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4086580

Description: X36 PB-F PHOTOCOUPLER SO4 BULK

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP290(GR,SE PDF

Country of origin: -

Date code: -

TLP290(GR,SE Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	100% @ 5mA
Current Transfer Ratio (Max):	300% @ 5mA
Turn On / Turn Off Time (Typ):	3µs, 3µs
Rise / Fall Time (Typ):	2µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	4-SOIC (0.179", 4.55mm Width)
Supplier Device Package:	4-SO
