4N46-560E

Part No :: 4N46-560E

Manufacturer: Broadcom

VIGOR # :: 4086682

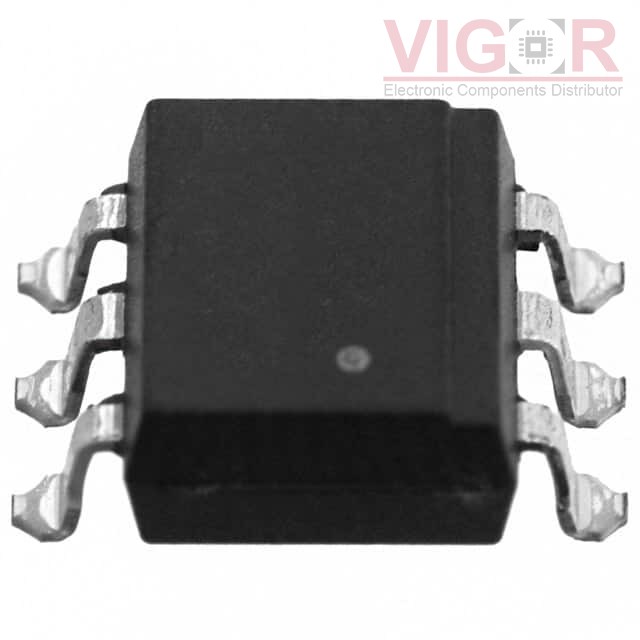

Description: OPTOISO 3.75KV DARL W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N46-560E PDF

Country of origin: -

Date code: -

4N46-560E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	200% @ 10mA
Current Transfer Ratio (Max):	1000% @ 10mA
Turn On / Turn Off Time (Typ):	5µs, 150µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington with Base
Voltage - Output (Max):	20V
Current - Output / Channel:	60mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
