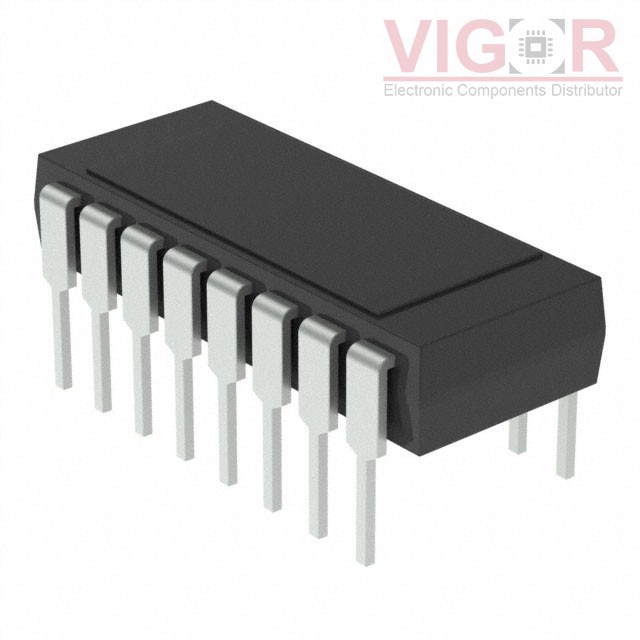

ACPL-1770L-200

Part No :: ACPL-1770L-200

Manufacturer: Broadcom

VIGOR # :: 4086761

Description: OPTOISO 1.5KV 4CH DARLNG 16-DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: ACPL-1770L-200 PDF

Country of origin: -

Date code: -

ACPL-1770L-200 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	4
Voltage - Isolation:	1500VDC
Current Transfer Ratio (Min):	200% @ 5mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	2µs, 6µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	20V
Current - Output / Channel:	40mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	10 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	16-CDIP (0.300", 7.62mm)
Supplier Device Package:	16-CDIP
