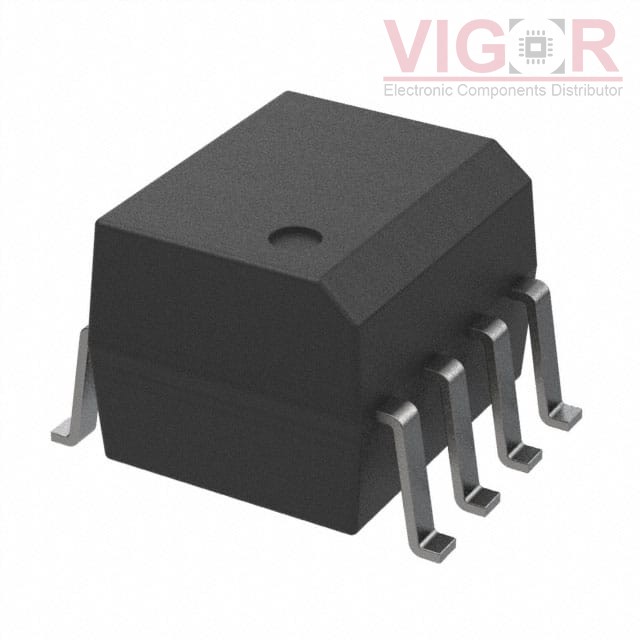

HCPL0731R1

Part No :: HCPL0731R1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOCOUPLER DARL 2CHAN 8SOIC

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL0731R1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HCPL0731R1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCPL0731R1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Number of Channels:	2
Voltage - Isolation:	2500Vrms
Current Transfer Ratio (Min):	400% @ 500µA
Current Transfer Ratio (Max):	5000% @ 500µA
Turn On / Turn Off Time (Typ):	300ns, 1.6µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	18V
Current - Output / Channel:	60mA
Voltage - Forward (Vf) (Typ):	1.35V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
