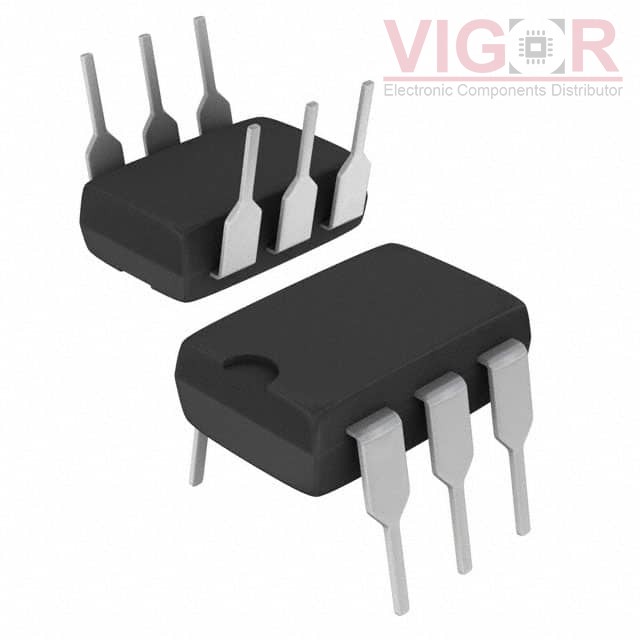

SFH601-1X001

Part No :: SFH601-1X001

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 4979227

Description: OPTOISO 5.3KV TRANS W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: SFH601-1X001 PDF

Country of origin: -

Date code: -

SFH601-1X001 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	40% @ 10mA
Current Transfer Ratio (Max):	80% @ 10mA
Turn On / Turn Off Time (Typ):	3µs, 2.3µs
Rise / Fall Time (Typ):	2µs, 2µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	100V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
