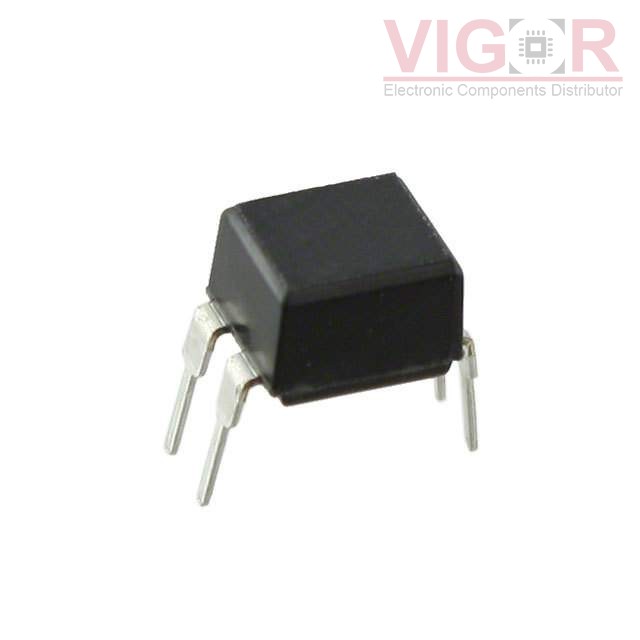

PC81711NSZ0F

Part No :: PC81711NSZ0F

Manufacturer: Sharp Microelectronics

VIGOR # :: 4979520

Description: OPTOISOLATOR 5KV TRANS 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PC81711NSZ0F PDF

Country of origin: -

Date code: -

PC81711NSZ0F Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	120% @ 500µA
Current Transfer Ratio (Max):	300% @ 500µA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	10 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
