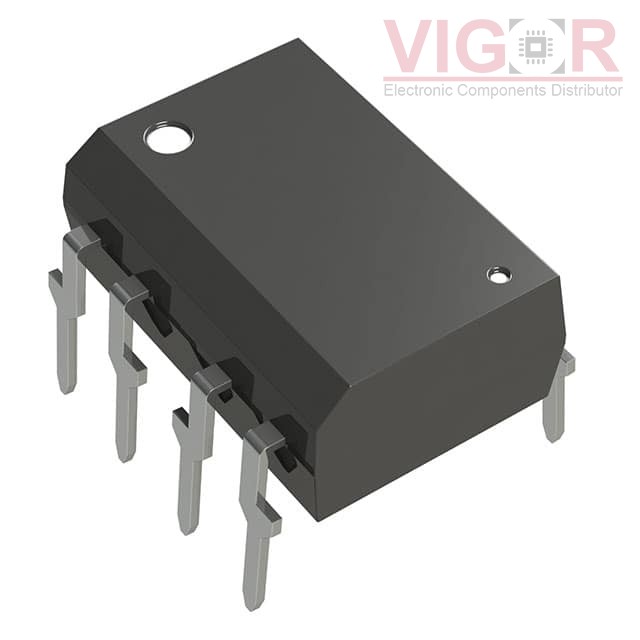

TLP504A(F)

Part No :: TLP504A(F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4979814

Description: OPTOISOLTR 2.5KV 2CH TRANS 8-DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP504A(F) PDF

Country of origin: -

Date code: -

TLP504A(F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	2
Voltage - Isolation:	2500Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	3µs, 3µs
Rise / Fall Time (Typ):	2µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	55V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
