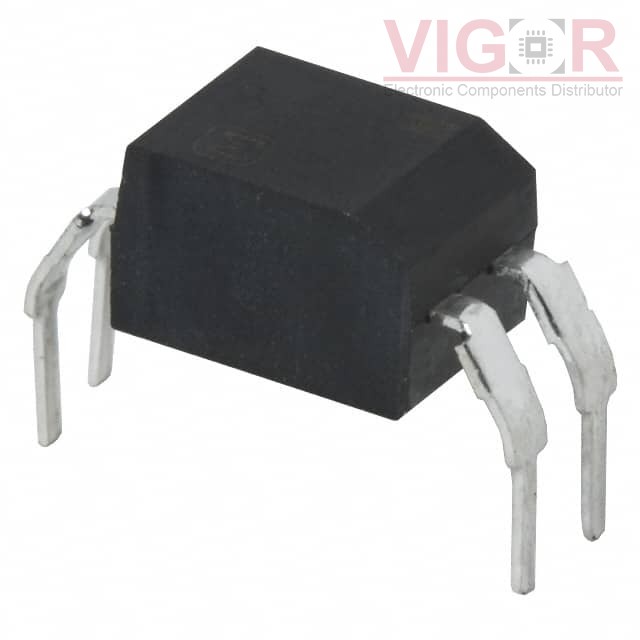

H11B815W

Part No :: H11B815W

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4979900

Description: OPTOISOLATOR 5KV DARLINGTON 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11B815W PDF

Country of origin: -

Date code: -

H11B815W Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	600% @ 1mA
Current Transfer Ratio (Max):	7500% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	300µs, 250µs (Max)
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	35V
Current - Output / Channel:	80mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	1V
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.400", 10.16mm)
Supplier Device Package:	4-DIP
