H11AV1FVM

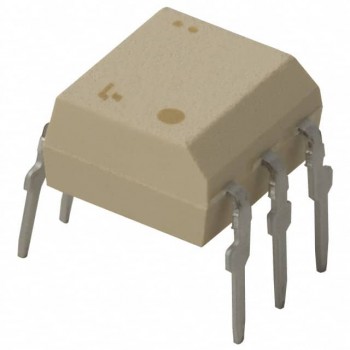

Image is for reference,
please contact us to get the real picture

Part No :: H11AV1FVM

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 4.17KV TRANS W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11AV1FVM PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of H11AV1FVM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H11AV1FVM Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	4170Vrms
Current Transfer Ratio (Min):	100% @ 10mA
Current Transfer Ratio (Max):	300% @ 10mA
Turn On / Turn Off Time (Typ):	15µs, 15µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	70V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.18V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
