OCP-PCT114/E-TR

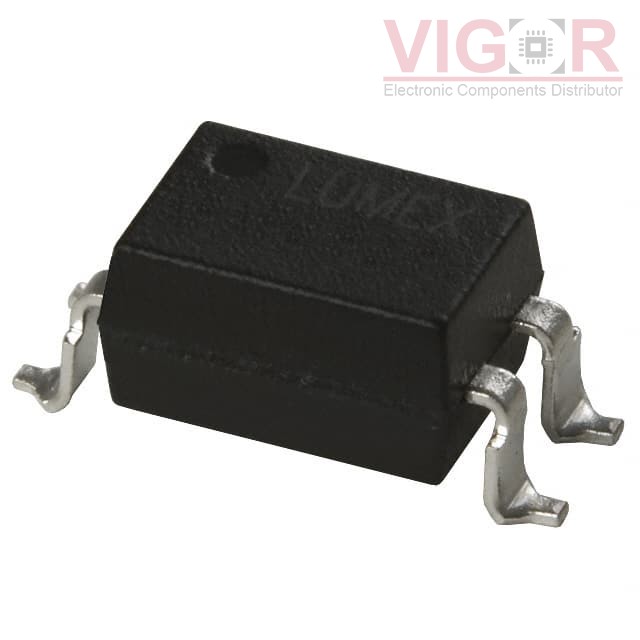

Part No :: OCP-PCT114/E-TR

Manufacturer: Lumex, Inc.

VIGOR # :: 4980435

Description: OPTOISOLATR 5KV TRANSISTOR 4-SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: OCP-PCT114/E-TR PDF

Country of origin: -

Date code: -

OCP-PCT114/E-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	60% @ 2mA
Current Transfer Ratio (Max):	600% @ 2mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	5µs, 4µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	60V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
