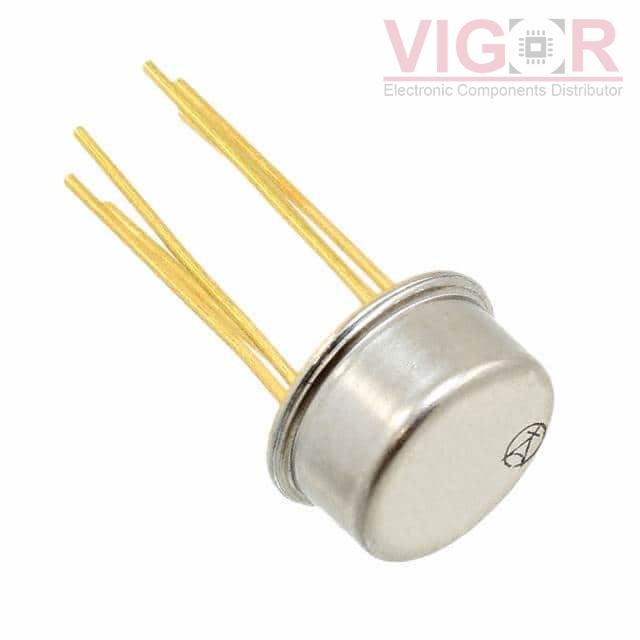

4N22ATXV

Part No :: 4N22ATXV

Manufacturer: TT Electronics / Optek Technology

VIGOR # :: 4980545

Description: OPTOISO 1KV TRANS W/BASE TO78-6

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N22ATXV PDF

Country of origin: -

Date code: -

4N22ATXV Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	1000VDC
Current Transfer Ratio (Min):	25% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	15µs, 15µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	35V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.3V (Max)
Current - DC Forward (If) (Max):	40 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-65°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-78-6 Metal Can
Supplier Device Package:	TO-78-6
