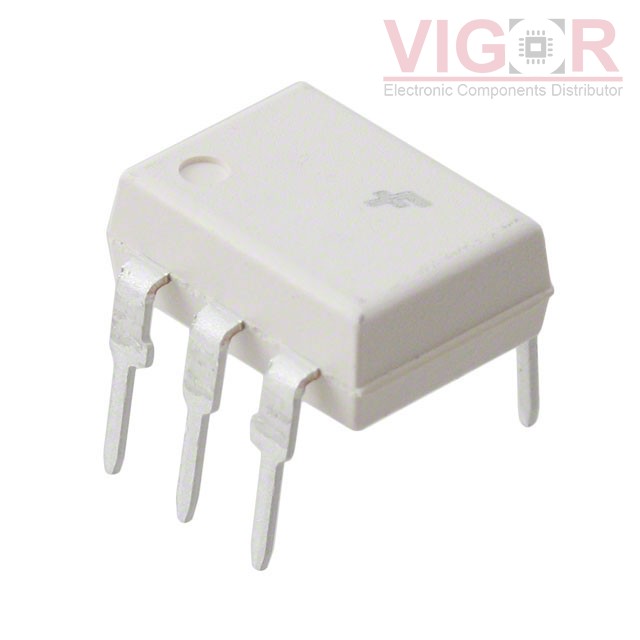

H11A2300

Part No :: H11A2300

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4980685

Description: OPTOISO 5.3KV TRANS W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11A2300 PDF

Country of origin: -

Date code: -

H11A2300 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	2µs, 2µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.18V
Current - DC Forward (If) (Max):	100 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
