CNX36U3SD

Part No :: CNX36U3SD

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4980705

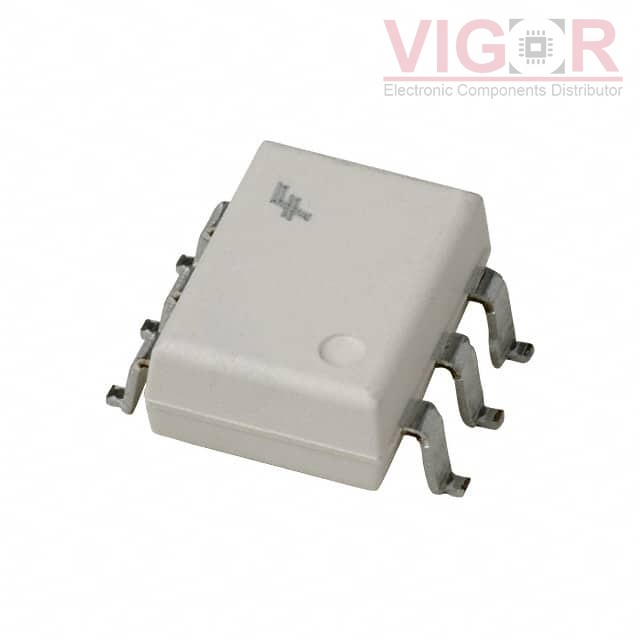

Description: OPTOISO 5.3KV TRANS W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: CNX36U3SD PDF

Country of origin: -

Date code: -

CNX36U3SD Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	80% @ 10mA
Current Transfer Ratio (Max):	200% @ 10mA
Turn On / Turn Off Time (Typ):	20µs, 20µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	100mA
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	100 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
