4N29SD

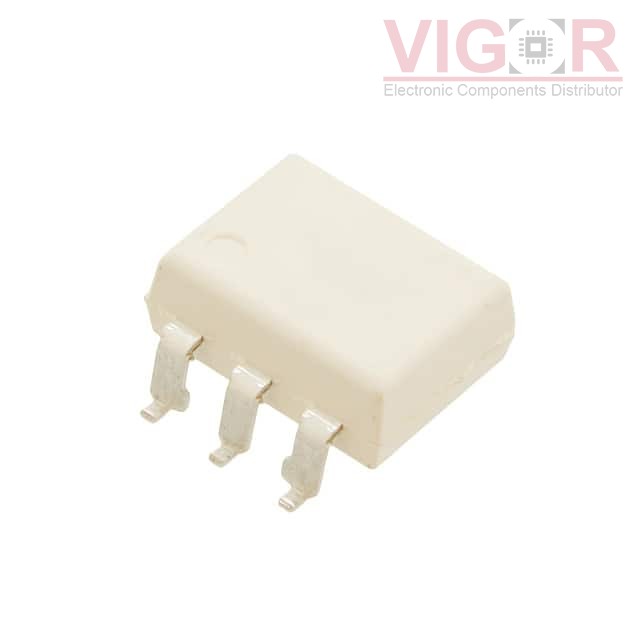

Part No :: 4N29SD

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4980764

Description: OPTOISO 5.3KV DARL W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N29SD PDF

Country of origin: -

Date code: -

4N29SD Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	100% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 40µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	150mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	80 mA
Vce Saturation (Max):	1V
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
