4N33-X00

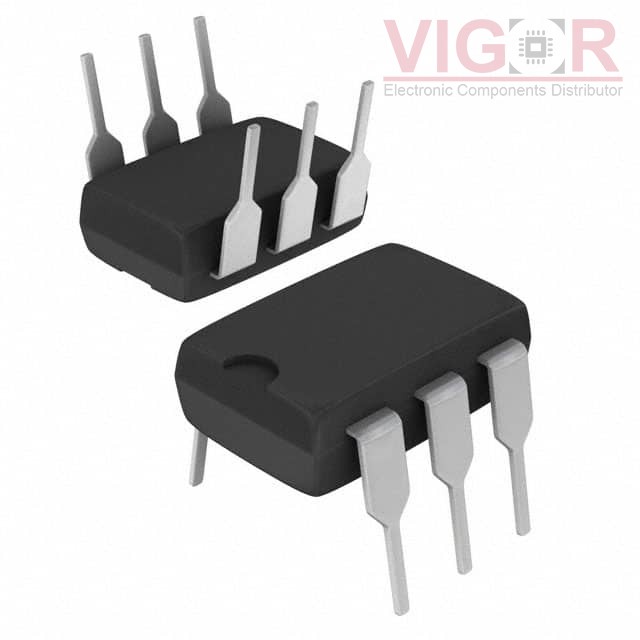

Image is for reference,
please contact us to get the real picture

Part No :: 4N33-X00

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 5.3KV DARL W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N33-X00 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 4N33-X00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

4N33-X00 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	500% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 100µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	1V (Typ)
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	-
