H24B2

Part No :: H24B2

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4980922

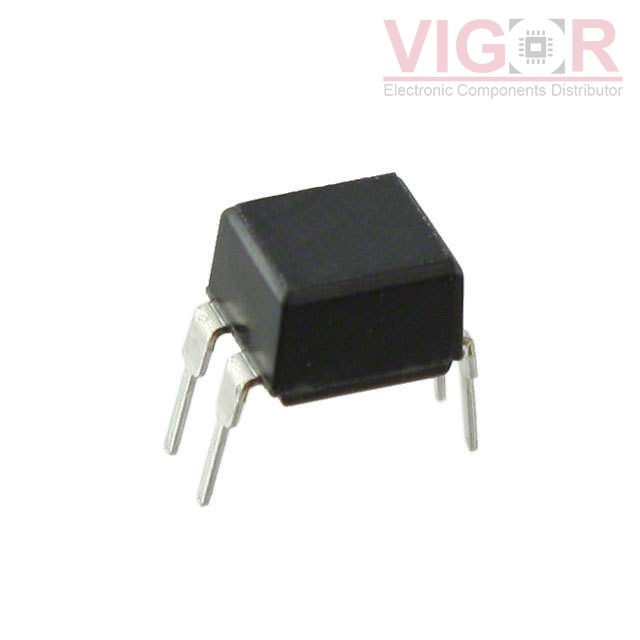

Description: OPTOISO 5.3KV DARLINGTON 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H24B2 PDF

Country of origin: -

Date code: -

H24B2 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	400% @ 5mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	105µs, 60µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	30V
Current - Output / Channel:	100mA
Voltage - Forward (Vf) (Typ):	1.7V (Max)
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	1V
Operating Temperature:	-55°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
