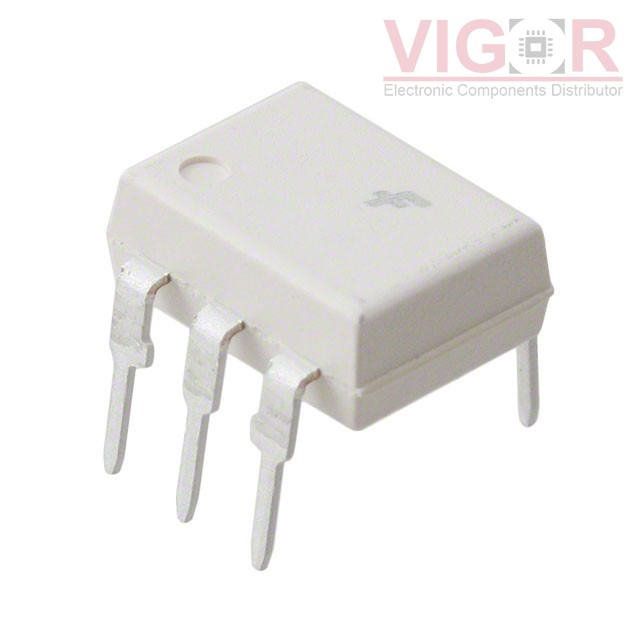

H11D2M

Part No :: H11D2M

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4981121

Description: OPTOISO 7.5KV TRANS W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11D2M PDF

Country of origin: -

Date code: -

H11D2M Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	7500Vpk
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 5µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	300V
Current - Output / Channel:	100mA
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	80 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
