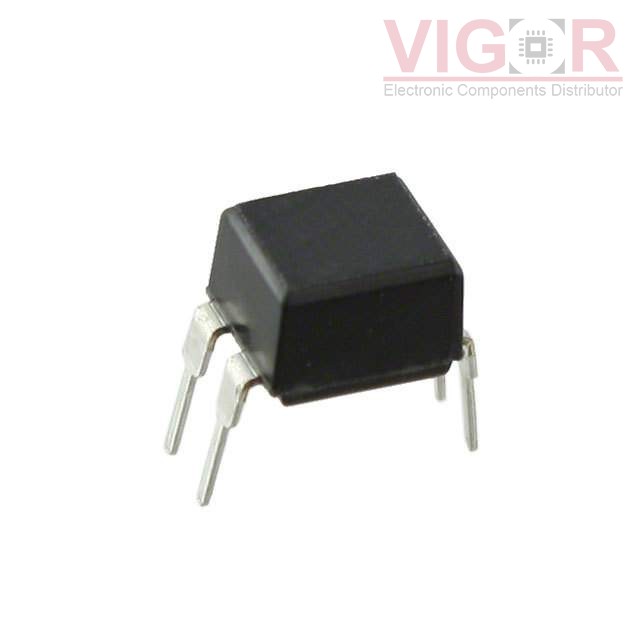

PC815XNNSZ0F

Part No :: PC815XNNSZ0F

Manufacturer: Sharp Microelectronics

VIGOR # :: 4981422

Description: OPTOISOLATOR 5KV DARL 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PC815XNNSZ0F PDF

Country of origin: -

Date code: -

PC815XNNSZ0F Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	600% @ 1mA
Current Transfer Ratio (Max):	7500% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	60µs, 53µs
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	35V
Current - Output / Channel:	80mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	1V
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
