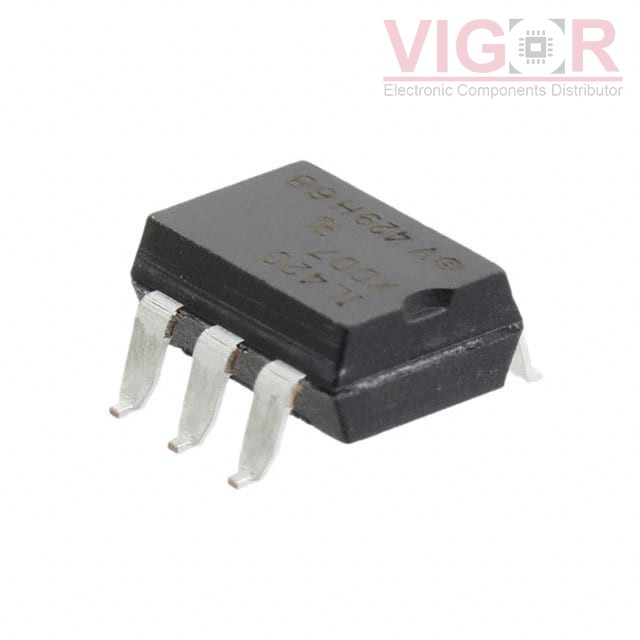

IL420-X007

Part No :: IL420-X007

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 4086877

Description: OPTOISOLATOR 5.3KV TRIAC

Catalog: Optoisolators - Triac, SCR Output

DataSheet: IL420-X007 PDF

Country of origin: -

Date code: -

IL420-X007 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Type:	Triac
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	10kV/µs
Current - LED Trigger (Ift) (Max):	2mA
Current - On State (It (RMS)) (Max):	300 mA
Current - Hold (Ih):	500µA
Turn On Time:	35µs
Voltage - Forward (Vf) (Typ):	1.16V
Current - DC Forward (If) (Max):	60 mA
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD
Supplier Device Package:	-
Approval Agency:	CQC, CSA, cUR, UR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2004

Shipped from

HK warehouse

Expected Shipping Date

Jan 17 - Jan 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.35~~	~~$3.35~~
10	~~$2.79~~	~~$27.93~~
25	~~$2.35~~	~~$58.66~~
100	~~$2.01~~	~~$201.11~~
250	~~$1.79~~	~~$446.92~~
500	~~$1.62~~	~~$810.04~~
2000	~~$1.42~~	~~$2 849.10~~
6000	~~$1.39~~	~~$8 312.64~~

Current price of IL420-X007 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
