APT1222A

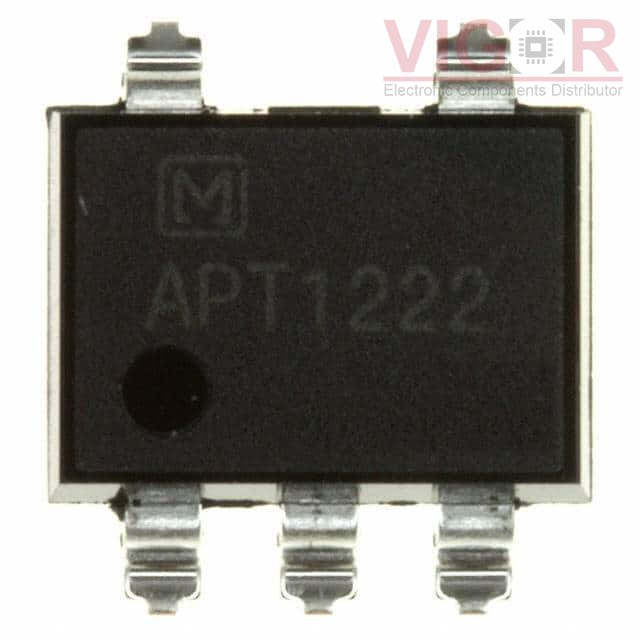

Image is for reference,
please contact us to get the real picture

Part No :: APT1222A

Manufacturer: Panasonic

Description: OPTOISOLATOR 5KV TRIAC 6SMD

Catalog: Optoisolators - Triac, SCR Output

DataSheet: APT1222A PDF

Availability: 998 pieces

Unit Price: ~~$2.19000~~

Current price of APT1222A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APT1222A Specifications

Type	Description
Series:	APT
Package:	Tube
Part Status:	Active
Output Type:	Triac
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	500V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	100 mA
Current - Hold (Ih):	3.5mA
Turn On Time:	100µs (Max)
Voltage - Forward (Vf) (Typ):	1.21V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD (5 Leads), Gull Wing
Supplier Device Package:	6-SMD
Approval Agency:	cUR, VDE

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 998

Shipped from

HK warehouse

Expected Shipping Date

Nov 15 - Nov 19 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$2.19000	$2.19
10	$1.94083	$19.4083
50	$1.44026	$72.013
100	$1.25232	$125.232
250	$1.12709	$281.7725
500	$1.00186	$500.93
1000	$0.86097	$860.97
2500	$0.81401	$2035.025
5000	$0.78270	$3913.5
