APT1211AZ

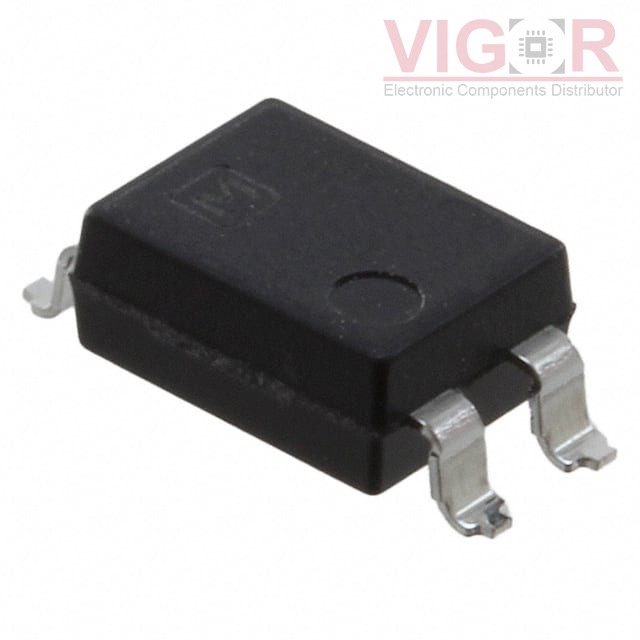

Image is for reference,
please contact us to get the real picture

Part No :: APT1211AZ

Manufacturer: Panasonic

Description: OPTOISOLATOR 5KV TRIAC 4DIP

Catalog: Optoisolators - Triac, SCR Output

DataSheet: APT1211AZ PDF

Availability: 0 pieces

Unit Price: ~~$0.75790~~

Current price of APT1211AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APT1211AZ Specifications

Type	Description
Series:	APT
Package:	Tape & Reel (TR)
Part Status:	Active
Output Type:	Triac
Zero Crossing Circuit:	Yes
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	500V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	100 mA
Current - Hold (Ih):	3.5mA
Turn On Time:	100µs (Max)
Voltage - Forward (Vf) (Typ):	1.21V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
Approval Agency:	cUR, VDE

Please confirm the specifications of the products when ordering.
