B65807N0040A001

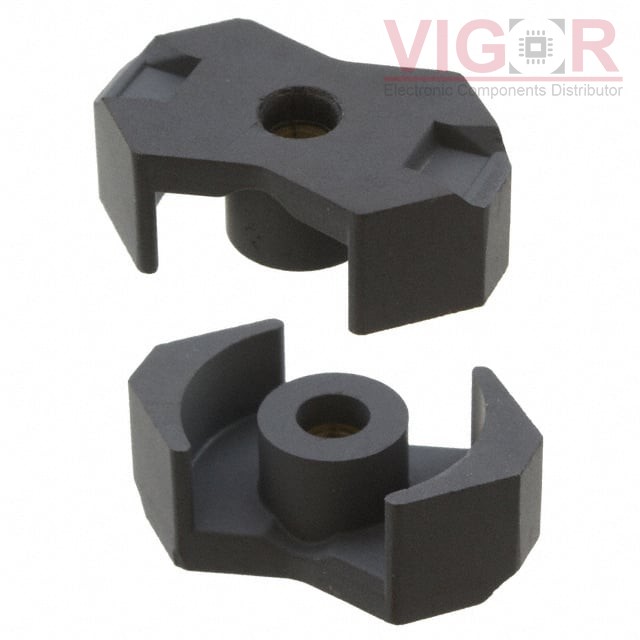

Image is for reference,
please contact us to get the real picture

Part No :: B65807N0040A001

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 40NH K1 2PCS

Catalog: Ferrite Cores

DataSheet: B65807N0040A001 PDF

Availability: 1293 pieces

Unit Price: ~~$5.80000~~

Current price of B65807N0040A001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65807N0040A001 Specifications

Type	Description
Series:	B65807
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 6
Material:	K1
Diameter:	-
Inductance Factor (Al):	40 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	27.4
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	0.86
Effective Length (le) mm:	26.9
Effective Area (Ae) mm²:	31.3
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	840
Finish:	Uncoated
Height:	6.25mm
Length:	17.90mm
Width:	8.20mm

Please confirm the specifications of the products when ordering.
