B65661W0000R030

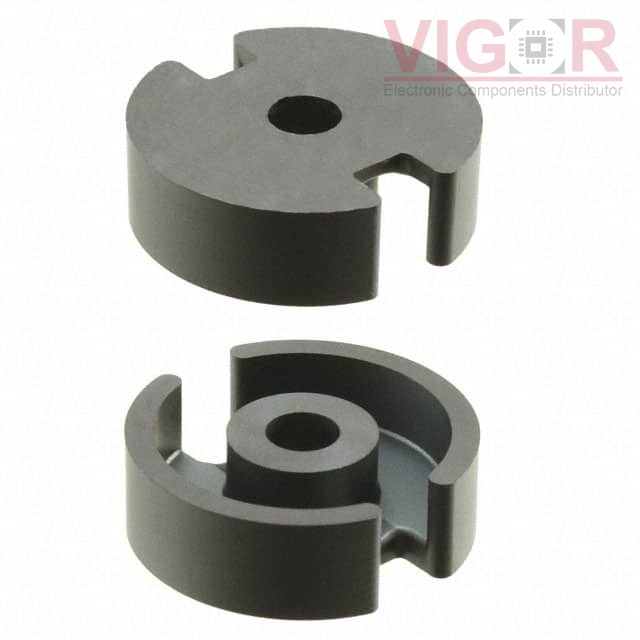

Image is for reference,
please contact us to get the real picture

Part No :: B65661W0000R030

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 8.3UH N30 2PCS

Catalog: Ferrite Cores

DataSheet: B65661W0000R030 PDF

Availability: 267 pieces

Unit Price: ~~$3.18000~~

Current price of B65661W0000R030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65661W0000R030 Specifications

Type	Description
Series:	B65661
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 22 x 13
Material:	N30
Diameter:	22.00mm
Inductance Factor (Al):	8.3 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	3020
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	0.46
Effective Length (le) mm:	33.2
Effective Area (Ae) mm²:	72.6
Minimum Core Cross Section (Amin) mm²:	58.1
Effective Magnetic Volume (Ve) mm³:	2410
Finish:	Uncoated
Height:	6.80mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
