9478202002

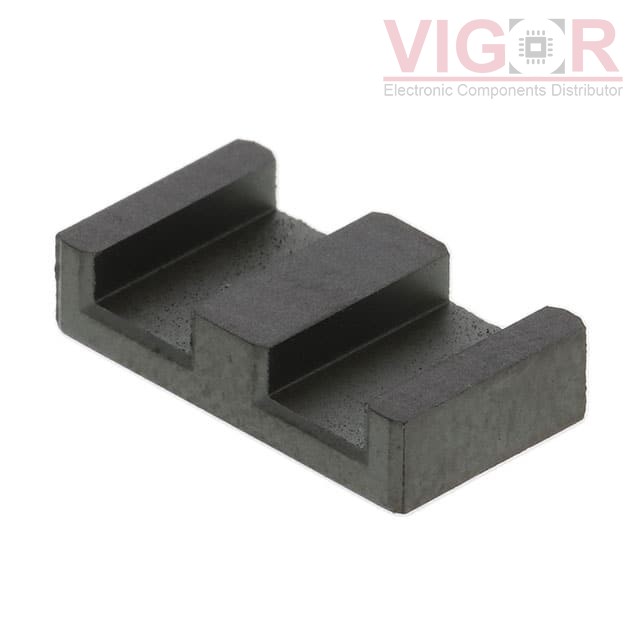

Image is for reference,
please contact us to get the real picture

Part No :: 9478202002

Manufacturer: Fair-Rite Products Corp.

Description: 78 PLANAR E CORE SET

Catalog: Ferrite Cores

DataSheet: 9478202002 PDF

Availability: 2174 pieces

Unit Price: ~~$0.66000~~

Current price of 9478202002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

9478202002 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	E
Supplier Device Package:	-
Material:	78
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2300
Core Factor (ΣI/A) mm^-1:	60
Effective Length (le) mm:	24.3
Effective Area (Ae) mm²:	39.5
Minimum Core Cross Section (Amin) mm²:	39
Effective Magnetic Volume (Ve) mm³:	960
Finish:	Uncoated
Height:	-
Length:	-
Width:	10.01mm

Please confirm the specifications of the products when ordering.
