B65839A0200C045

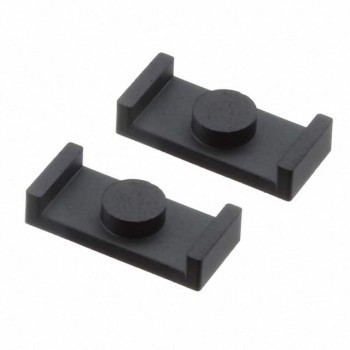

Image is for reference,
please contact us to get the real picture

Part No :: B65839A0200C045

Manufacturer: TDK EPCOS

Description: FERRITE CORE EP 200NH N45 2PCS

Catalog: Ferrite Cores

DataSheet: B65839A0200C045 PDF

Availability: 0 pieces

Unit Price: ~~$0.45699~~

Current price of B65839A0200C045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65839A0200C045 Specifications

Type	Description
Series:	B65839
Package:	Box
Part Status:	Active
Core Type:	EP
Supplier Device Package:	EP 7
Material:	N45
Diameter:	-
Inductance Factor (Al):	200 nH
Tolerance:	±6%
Gap:	Gapped
Effective Permeability (µe):	243
Initial Permeability (µi):	3800
Core Factor (ΣI/A) mm^-1:	1.52
Effective Length (le) mm:	15.7
Effective Area (Ae) mm²:	10.3
Minimum Core Cross Section (Amin) mm²:	8.5
Effective Magnetic Volume (Ve) mm³:	162
Finish:	Uncoated
Height:	3.75mm
Length:	9.40mm
Width:	6.50mm

Please confirm the specifications of the products when ordering.
