B65686A0315A027

Part No :: B65686A0315A027

Manufacturer: TDK EPCOS

VIGOR # :: 4178302

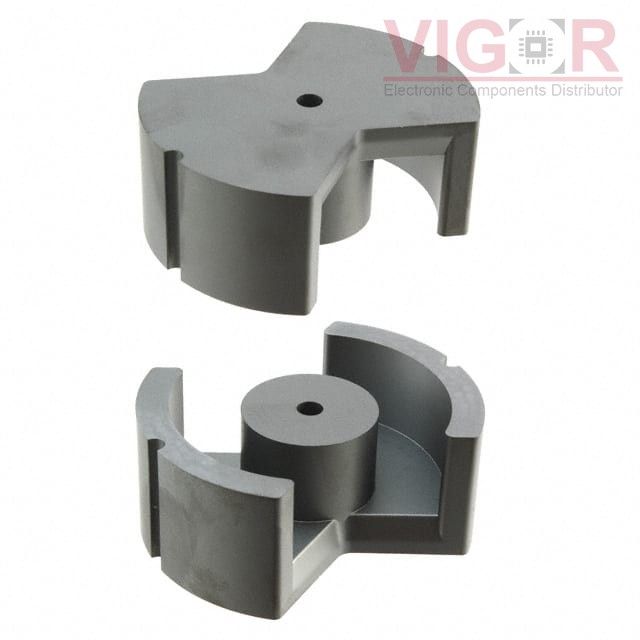

Description: FERRITE CORE PM 315NH N27 2PCS

Catalog: Ferrite Cores

DataSheet: B65686A0315A027 PDF

Country of origin: -

Date code: -

B65686A0315A027 Specifications

Type	Description
Series:	B65686
Package:	Box
Part Status:	Active
Core Type:	PM
Supplier Device Package:	PM 74 x 59
Material:	N27
Diameter:	74.00mm
Inductance Factor (Al):	315 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	41
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	0.162
Effective Length (le) mm:	128
Effective Area (Ae) mm²:	790
Minimum Core Cross Section (Amin) mm²:	630
Effective Magnetic Volume (Ve) mm³:	101000
Finish:	Uncoated
Height:	29.50mm
Length:	-
Width:	-
