PC95EL18X7.3-Z

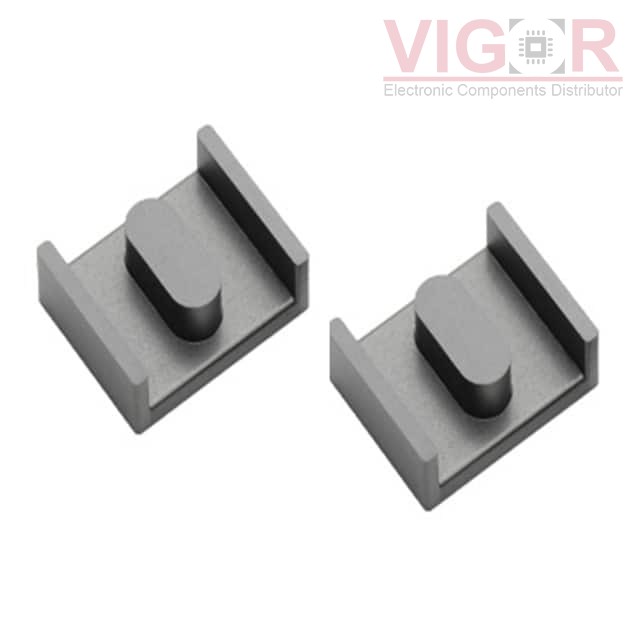

Image is for reference,
please contact us to get the real picture

Part No :: PC95EL18X7.3-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE EL 4.76UH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC95EL18X7.3-Z PDF

Availability: 34 pieces

Unit Price: ~~$1.80000~~

Current price of PC95EL18X7.3-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95EL18X7.3-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	EL
Supplier Device Package:	EL 18 x 7.3
Material:	PC95
Diameter:	-
Inductance Factor (Al):	4.76 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.54
Effective Length (le) mm:	44.3
Effective Area (Ae) mm²:	23.8
Minimum Core Cross Section (Amin) mm²:	43
Effective Magnetic Volume (Ve) mm³:	1050
Finish:	Uncoated
Height:	3.65mm
Length:	18.00mm
Width:	14.40mm

Please confirm the specifications of the products when ordering.
