B65941A0000X022

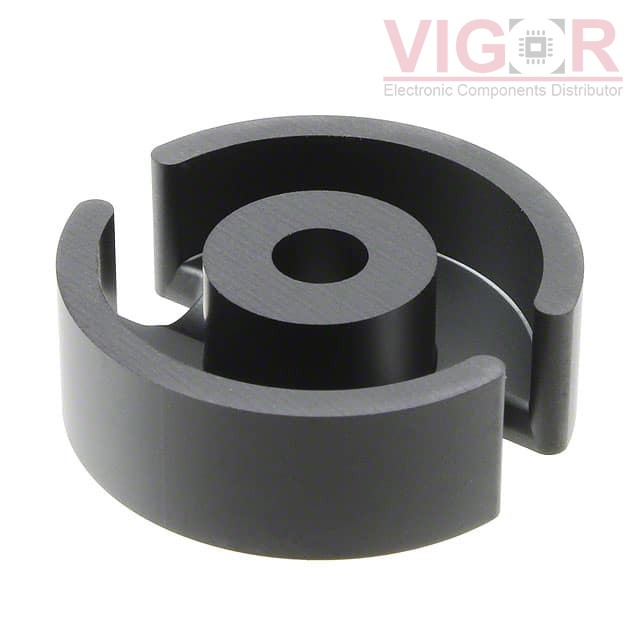

Image is for reference,
please contact us to get the real picture

Part No :: B65941A0000X022

Manufacturer: TDK EPCOS

Description: FERRITE CORE PS N22

Catalog: Ferrite Cores

DataSheet: B65941A0000X022 PDF

Availability: 85 pieces

Unit Price: ~~$3.47000~~

Current price of B65941A0000X022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65941A0000X022 Specifications

Type	Description
Series:	B65941
Package:	Box
Part Status:	Active
Core Type:	PS
Supplier Device Package:	PS 30.5 x 10.2
Material:	N22
Diameter:	30.50mm
Inductance Factor (Al):	-
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	-
Effective Length (le) mm:	-
Effective Area (Ae) mm²:	-
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	-
Finish:	Uncoated
Height:	10.20mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
