B66289G0000X149

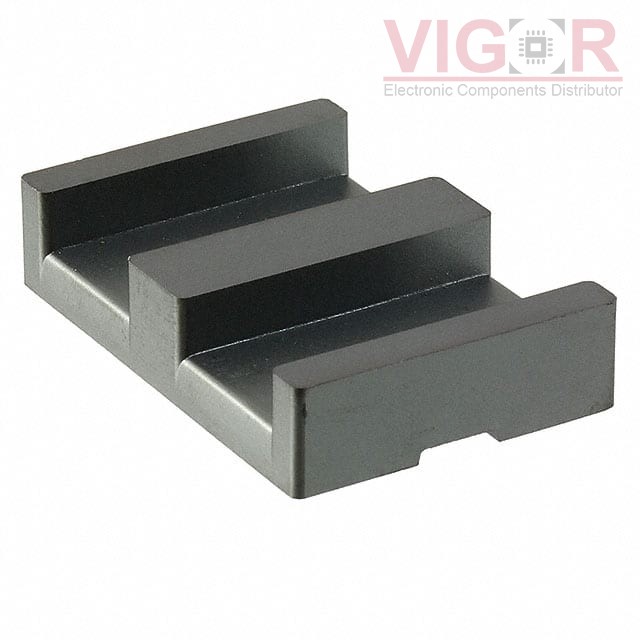

Image is for reference,
please contact us to get the real picture

Part No :: B66289G0000X149

Manufacturer: TDK EPCOS

Description: FERRITE CORE ELP N49 1PC

Catalog: Ferrite Cores

DataSheet: B66289G0000X149 PDF

Availability: 964 pieces

Unit Price: ~~$4.94000~~

Current price of B66289G0000X149 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66289G0000X149 Specifications

Type	Description
Series:	B66289
Package:	Box
Part Status:	Active
Core Type:	ELP
Supplier Device Package:	ELP 38 x 8 x 25
Material:	N49
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	-
Effective Length (le) mm:	-
Effective Area (Ae) mm²:	-
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	-
Finish:	Uncoated
Height:	8.25mm
Length:	38.10mm
Width:	25.40mm
