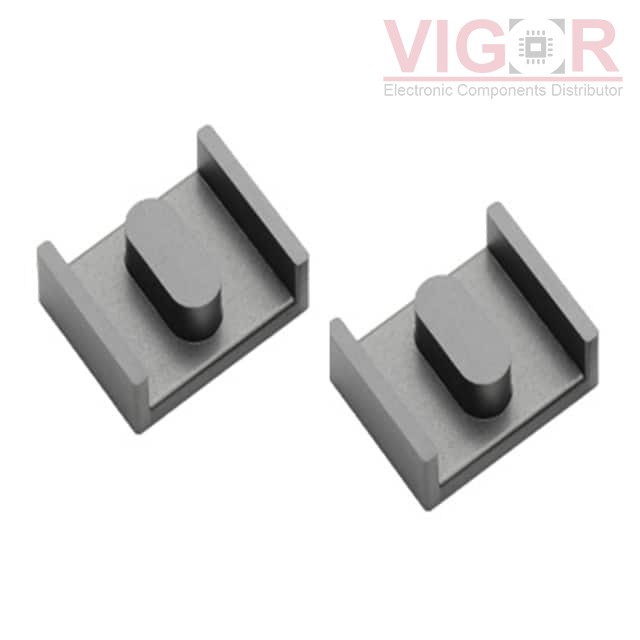

PC95EL20X7.7-Z

Part No :: PC95EL20X7.7-Z

Manufacturer: TDK Corporation

VIGOR # :: 4178444

Description: FERRITE CORE EL 5.63UH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC95EL20X7.7-Z PDF

Country of origin: -

Date code: -

PC95EL20X7.7-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	EL
Supplier Device Package:	EL 20 x 7.7
Material:	PC95
Diameter:	-
Inductance Factor (Al):	5.63 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.47
Effective Length (le) mm:	54.6
Effective Area (Ae) mm²:	25.6
Minimum Core Cross Section (Amin) mm²:	52.9
Effective Magnetic Volume (Ve) mm³:	1400
Finish:	Uncoated
Height:	3.83mm
Length:	20.00mm
Width:	16.00mm
