B66417U0400H187

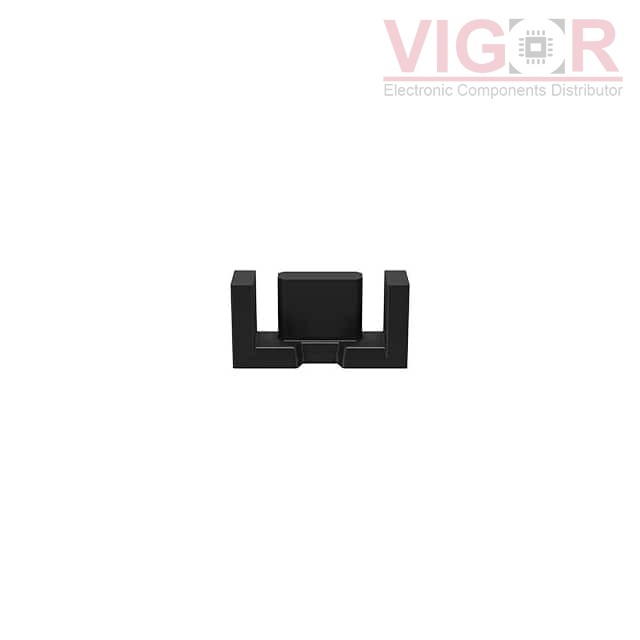

Image is for reference,
please contact us to get the real picture

Part No :: B66417U0400H187

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66417U0400H187 PDF

Availability: 0 pieces

Unit Price: ~~$0.31774~~

Current price of B66417U0400H187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66417U0400H187 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	EFD
Supplier Device Package:	EFD 20 x 10 x 7
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	±12%
Gap:	Gapped
Effective Permeability (µe):	483
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	1.52
Effective Length (le) mm:	47
Effective Area (Ae) mm²:	31
Minimum Core Cross Section (Amin) mm²:	31
Effective Magnetic Volume (Ve) mm³:	1460
Finish:	Uncoated
Height:	10.00mm
Length:	20.00mm
Width:	6.65mm
