B65819P0000R049

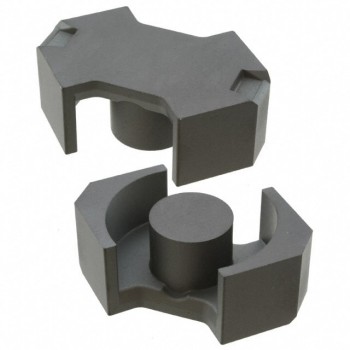

Image is for reference,
please contact us to get the real picture

Part No :: B65819P0000R049

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 2.4UH N49 2PCS

Catalog: Ferrite Cores

DataSheet: B65819P0000R049 PDF

Availability: 0 pieces

Unit Price: ~~$1.42115~~

Current price of B65819P0000R049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65819P0000R049 Specifications

Type	Description
Series:	B65819P
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 7 LP
Material:	N49
Diameter:	-
Inductance Factor (Al):	2.4 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	990
Initial Permeability (µi):	1500
Core Factor (ΣI/A) mm^-1:	0.52
Effective Length (le) mm:	23.5
Effective Area (Ae) mm²:	45.3
Minimum Core Cross Section (Amin) mm²:	39.6
Effective Magnetic Volume (Ve) mm³:	1060
Finish:	Uncoated
Height:	4.90mm
Length:	20.30mm
Width:	-

Please confirm the specifications of the products when ordering.
