B66393G0000X197

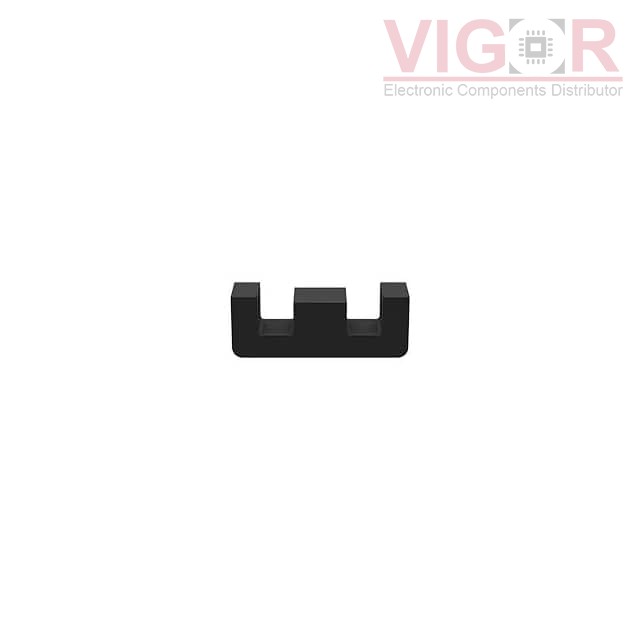

Product image
Product thumb
Part No :

B66393G0000X197

Manufacturer
TDK EPCOS
VIGOR # :

4178488

Description
FERRITE CORE
Catalog
Ferrite Cores
DataSheet
B66393G0000X197 PDF
Country of origin
-
Date code
-
ads
B66393G0000X197 Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Core Type:E
Supplier Device Package:E 16 x 6 x 5
Material:N97
Diameter:-
Inductance Factor (Al):1.25 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):1480
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:1.49
Effective Length (le) mm:28.6
Effective Area (Ae) mm²:19.2
Minimum Core Cross Section (Amin) mm²:17.6
Effective Magnetic Volume (Ve) mm³:549
Finish:Uncoated
Height:5.80mm
Length:16.00mm
Width:4.70mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 25 - Jan 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.27 $0.27
6000 $0.26 $1 548.00

Current price of B66393G0000X197 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
