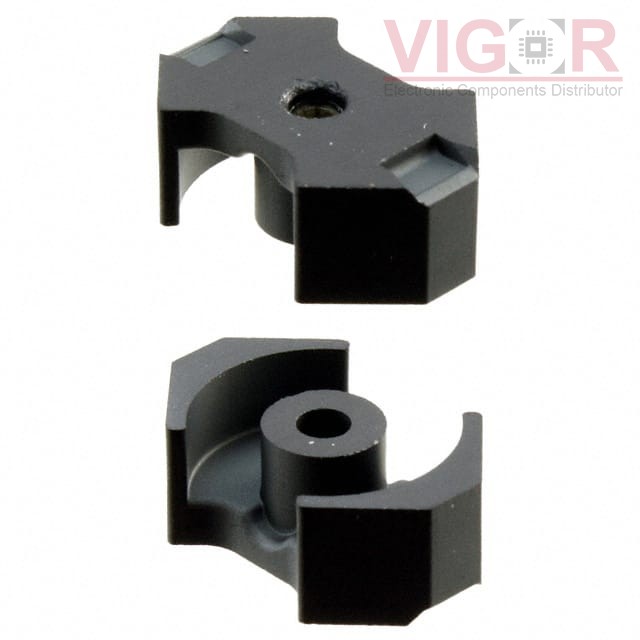

B65805C0100A033

Image is for reference,
please contact us to get the real picture

Part No :: B65805C0100A033

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 100NH M33 2PCS

Catalog: Ferrite Cores

DataSheet: B65805C0100A033 PDF

Availability: 805 pieces

Unit Price: ~~$2.18000~~

Current price of B65805C0100A033 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65805C0100A033 Specifications

Type	Description
Series:	B65805
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 5
Material:	M33
Diameter:	-
Inductance Factor (Al):	100 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	79.6
Initial Permeability (µi):	750
Core Factor (ΣI/A) mm^-1:	1
Effective Length (le) mm:	20.8
Effective Area (Ae) mm²:	20.8
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	433
Finish:	Uncoated
Height:	5.25mm
Length:	14.60mm
Width:	6.80mm

Please confirm the specifications of the products when ordering.
