PC95ELT20X7.7-Z

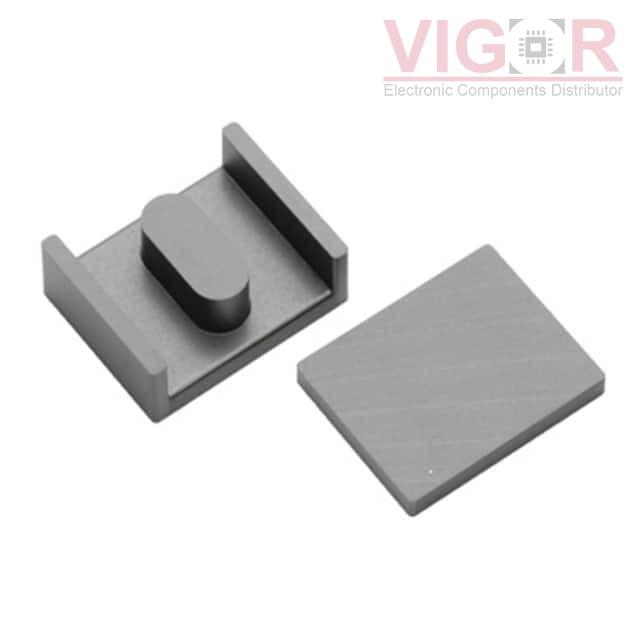

Image is for reference,
please contact us to get the real picture

Part No :: PC95ELT20X7.7-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE ELT 5.63UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95ELT20X7.7-Z PDF

Availability: 301 pieces

Unit Price: ~~$2.23000~~

Current price of PC95ELT20X7.7-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC95ELT20X7.7-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ELH, PLT
Supplier Device Package:	ELT 20 x 7.7
Material:	PC95
Diameter:	-
Inductance Factor (Al):	5.63 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.47
Effective Length (le) mm:	54.6
Effective Area (Ae) mm²:	25.6
Minimum Core Cross Section (Amin) mm²:	52.9
Effective Magnetic Volume (Ve) mm³:	1400
Finish:	Uncoated
Height:	5.83mm
Length:	20.00mm
Width:	16.00mm
