B65686A0000R087

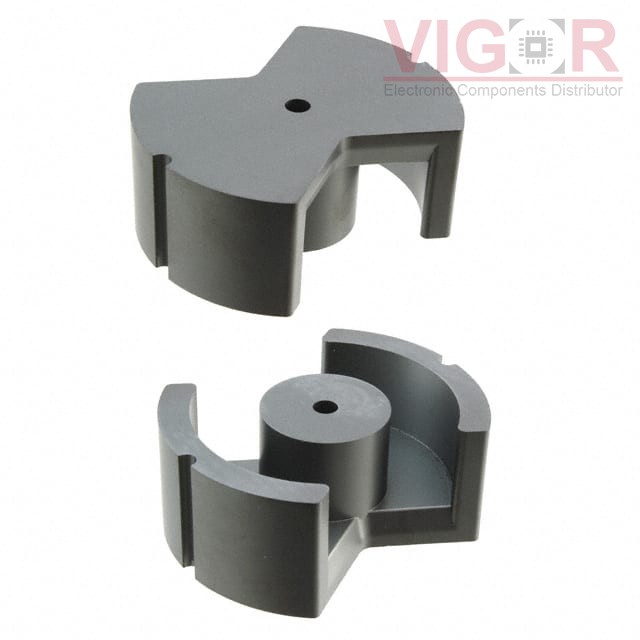

Product image
Product thumb
Part No :

B65686A0000R087

Manufacturer
TDK EPCOS
VIGOR # :

4178675

Description
FERRITE CORE PM 10UH N87 2PCS
Catalog
Ferrite Cores
DataSheet
B65686A0000R087 PDF
Country of origin
-
Date code
-
ads
B65686A0000R087 Specifications
Type Description
Series:B65686
Package:Box
Part Status:Active
Core Type:PM
Supplier Device Package:PM 74 x 59
Material:N87
Diameter:74.00mm
Inductance Factor (Al):10 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1290
Initial Permeability (µi):2200
Core Factor (ΣI/A) mm-1:0.162
Effective Length (le) mm:128
Effective Area (Ae) mm²:790
Minimum Core Cross Section (Amin) mm²:630
Effective Magnetic Volume (Ve) mm³:101000
Finish:Uncoated
Height:29.50mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 204
Shipped from
HK warehouse
Expected Shipping Date
Jun 27 - Jul 01 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $69.6500 $69.65
10 $61.9122 $619.12
25 $51.0777 $1 276.94
50 $49.5301 $2 476.51
100 $43.3388 $4 333.88

Current price of B65686A0000R087 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
