PC95EIR22/5.5/15-Z

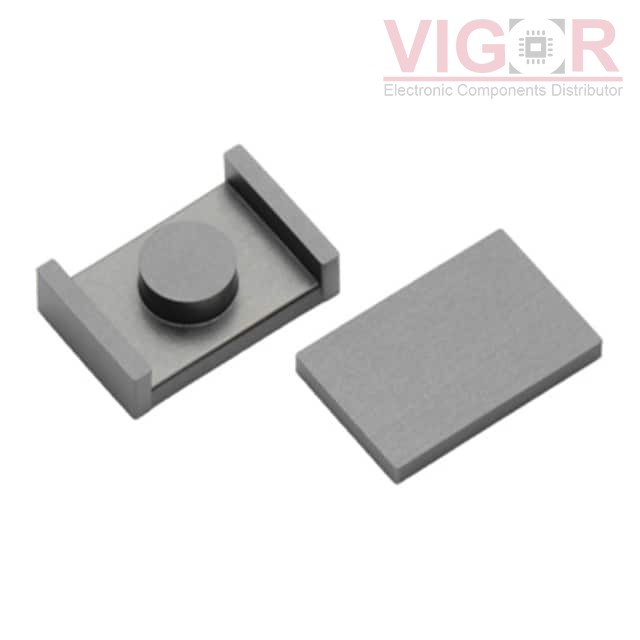

Product image
Product thumb
Part No :

PC95EIR22/5.5/15-Z

Manufacturer
TDK Corporation
VIGOR # :

4178689

Description
FERRITE CORE EIR 4.15UH 1SET
Catalog
Ferrite Cores
DataSheet
PC95EIR22/5.5/15-Z PDF
Country of origin
-
Date code
-
ads
PC95EIR22/5.5/15-Z Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:HER, PLT
Supplier Device Package:EIR 22 x 5.5 x 15
Material:PC95
Diameter:-
Inductance Factor (Al):4.15 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.51
Effective Length (le) mm:46.1
Effective Area (Ae) mm²:23.2
Minimum Core Cross Section (Amin) mm²:36.3
Effective Magnetic Volume (Ve) mm³:1070
Finish:Uncoated
Height:5.50mm
Length:22.10mm
Width:15.25mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 37
Shipped from
HK warehouse
Expected Shipping Date
Jan 28 - Feb 01 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.58 $2.58
10 $2.22 $22.25
25 $1.69 $42.28
50 $1.60 $80.10
100 $1.42 $142.40
256 $1.34 $341.76
512 $1.25 $637.95
1024 $1.14 $1 171.10
5120 $1.11 $5 696.00

Current price of PC95EIR22/5.5/15-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
