B65671T0100A033

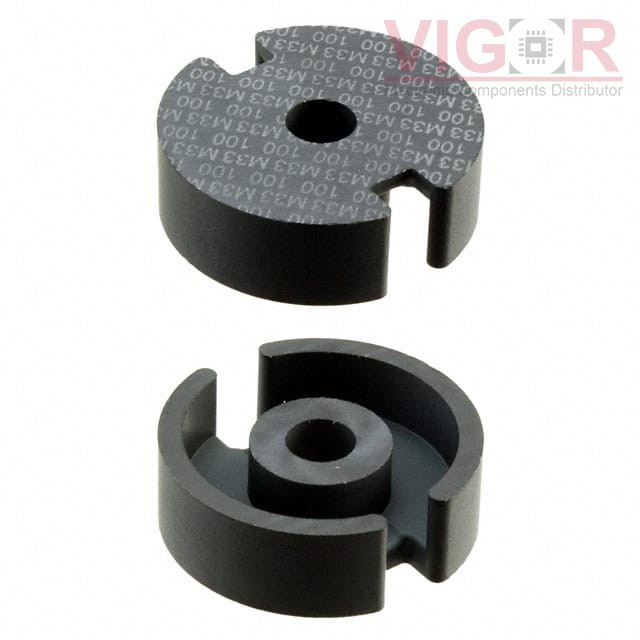

Image is for reference,
please contact us to get the real picture

Part No :: B65671T0100A033

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 100NH M33 2PCS

Catalog: Ferrite Cores

DataSheet: B65671T0100A033 PDF

Availability: 0 pieces

Unit Price: ~~$8.02000~~

Current price of B65671T0100A033 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65671T0100A033 Specifications

Type	Description
Series:	B65671
Package:	Bulk
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 26 x 16
Material:	M33
Diameter:	26.00mm
Inductance Factor (Al):	100 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	32
Initial Permeability (µi):	750
Core Factor (ΣI/A) mm^-1:	0.4
Effective Length (le) mm:	37.2
Effective Area (Ae) mm²:	93
Minimum Core Cross Section (Amin) mm²:	76.5
Effective Magnetic Volume (Ve) mm³:	3460
Finish:	Uncoated
Height:	8.15mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
