7895400421

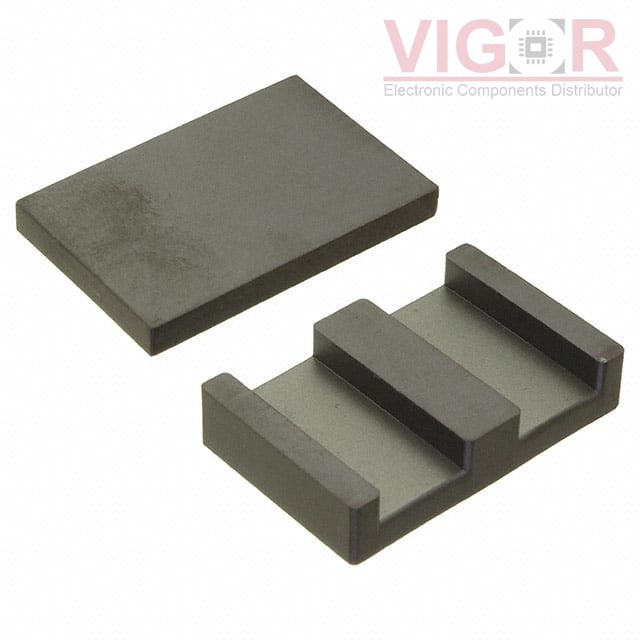

Image is for reference,
please contact us to get the real picture

Part No :: 7895400421

Manufacturer: Fair-Rite Products Corp.

Description: 95 PLANAR EI CORE SET

Catalog: Ferrite Cores

DataSheet: 7895400421 PDF

Availability: 528 pieces

Unit Price: ~~$1.60000~~

Current price of 7895400421 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7895400421 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Core Type:	Planar E/I
Supplier Device Package:	-
Material:	95
Diameter:	-
Inductance Factor (Al):	8.7 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	3000
Core Factor (ΣI/A) mm^-1:	27
Effective Length (le) mm:	35.2
Effective Area (Ae) mm²:	130
Minimum Core Cross Section (Amin) mm²:	129
Effective Magnetic Volume (Ve) mm³:	4570
Finish:	Uncoated
Height:	6.35mm
Length:	31.75mm
Width:	20.32mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 528

Shipped from

HK warehouse

Expected Shipping Date

Nov 16 - Nov 20 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$1.60000	$1.6
10	$1.43729	$14.3729
25	$1.06522	$26.6305
50	$1.01180	$50.59
100	$0.90536	$90.536
250	$0.85212	$213.03
500	$0.79886	$399.43
1000	$0.69234	$692.34
5000	$0.66571	$3328.55
