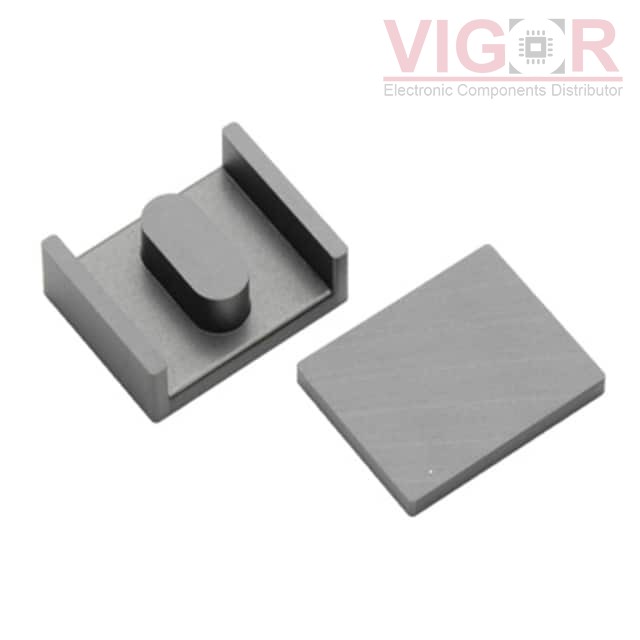

PC95ELT22X8-Z

Part No :: PC95ELT22X8-Z

Manufacturer: TDK Corporation

VIGOR # :: 4178746

Description: FERRITE CORE ELT 6.54UH 1SET

Catalog: Ferrite Cores

DataSheet: PC95ELT22X8-Z PDF

Country of origin: -

Date code: -

PC95ELT22X8-Z Specifications

Type	Description
Series:	Planar
Package:	Tray
Part Status:	Active
Core Type:	ELH, PLT
Supplier Device Package:	ELT 22 x 8
Material:	PC95
Diameter:	-
Inductance Factor (Al):	6.54 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	0.41
Effective Length (le) mm:	66.2
Effective Area (Ae) mm²:	27.3
Minimum Core Cross Section (Amin) mm²:	64.2
Effective Magnetic Volume (Ve) mm³:	1810
Finish:	Uncoated
Height:	6.02mm
Length:	22.00mm
Width:	17.60mm
