B65517D0200A048

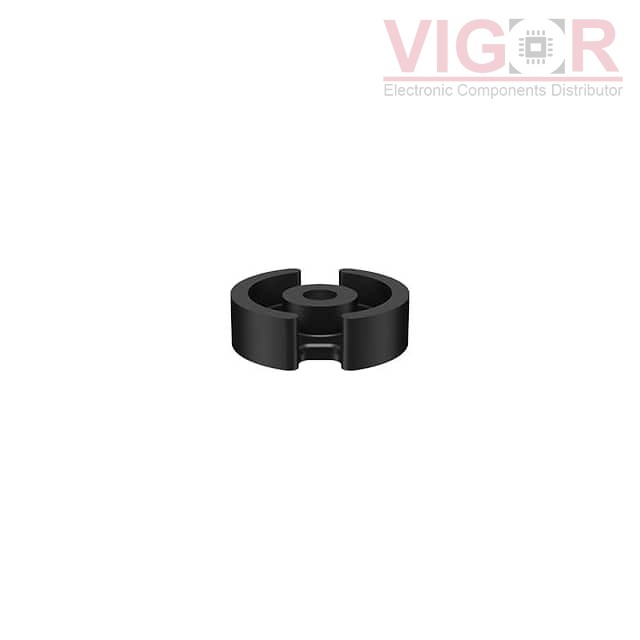

Image is for reference,
please contact us to get the real picture

Part No :: B65517D0200A048

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 200NH N48 2PCS

Catalog: Ferrite Cores

DataSheet: B65517D0200A048 PDF

Availability: 0 pieces

Unit Price: ~~$0.93180~~

Current price of B65517D0200A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65517D0200A048 Specifications

Type	Description
Series:	B65517
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 9 x 5
Material:	N48
Diameter:	9.30mm
Inductance Factor (Al):	200 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	200
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	1.25
Effective Length (le) mm:	12.5
Effective Area (Ae) mm²:	10
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	125
Finish:	Uncoated
Height:	2.70mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
